Logitech M555B charging dock





Part 2

Circuit

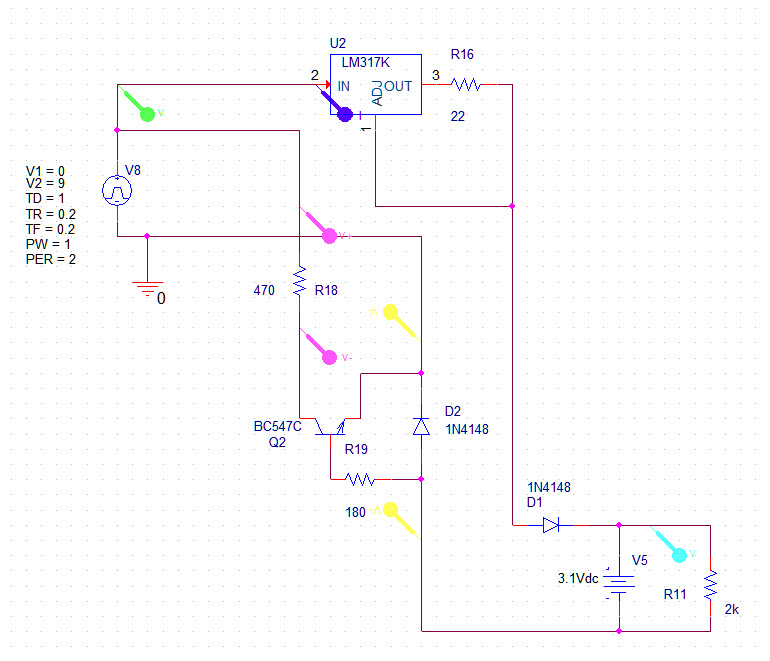

Quick simulation to see if theory for the charge indication works
Im looking for a voltage drop across a diode, high enough to allow for a small current to be run through base of a PNP
If it works it could source a diode as sonn as conection with battery is made.

LM317 set at 60mA as constant current charger, one can leave it charging
indefinetly since it uses NiMH cells.

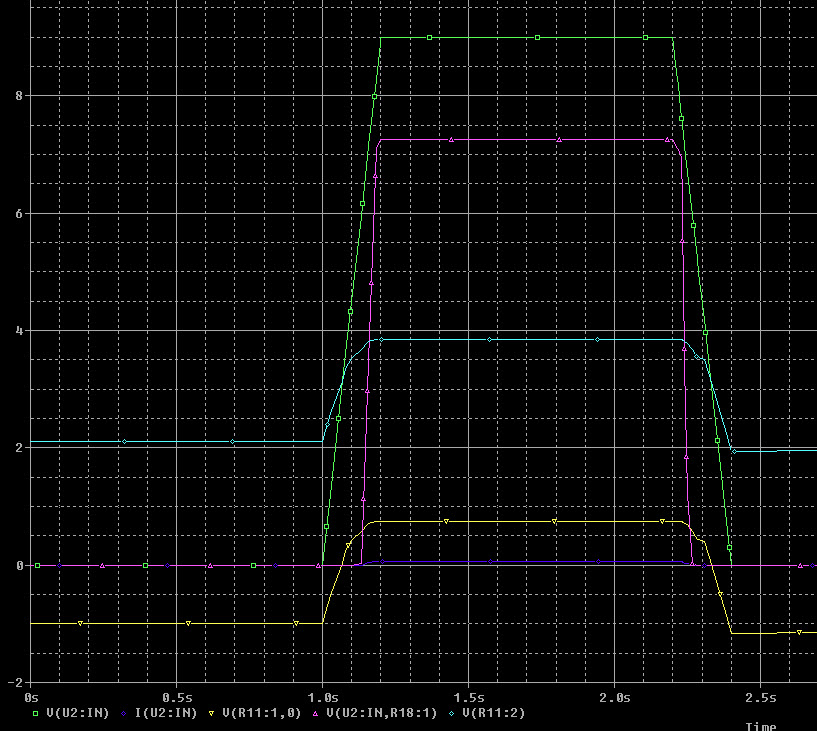

Pspice simulation collaborates my thery, voltage levels seems to be ok



Components in mockup

Voltage drop over diode 1N4001 connected to base-emitter on BC549 lights the LED when docking mouse completes the circuit.

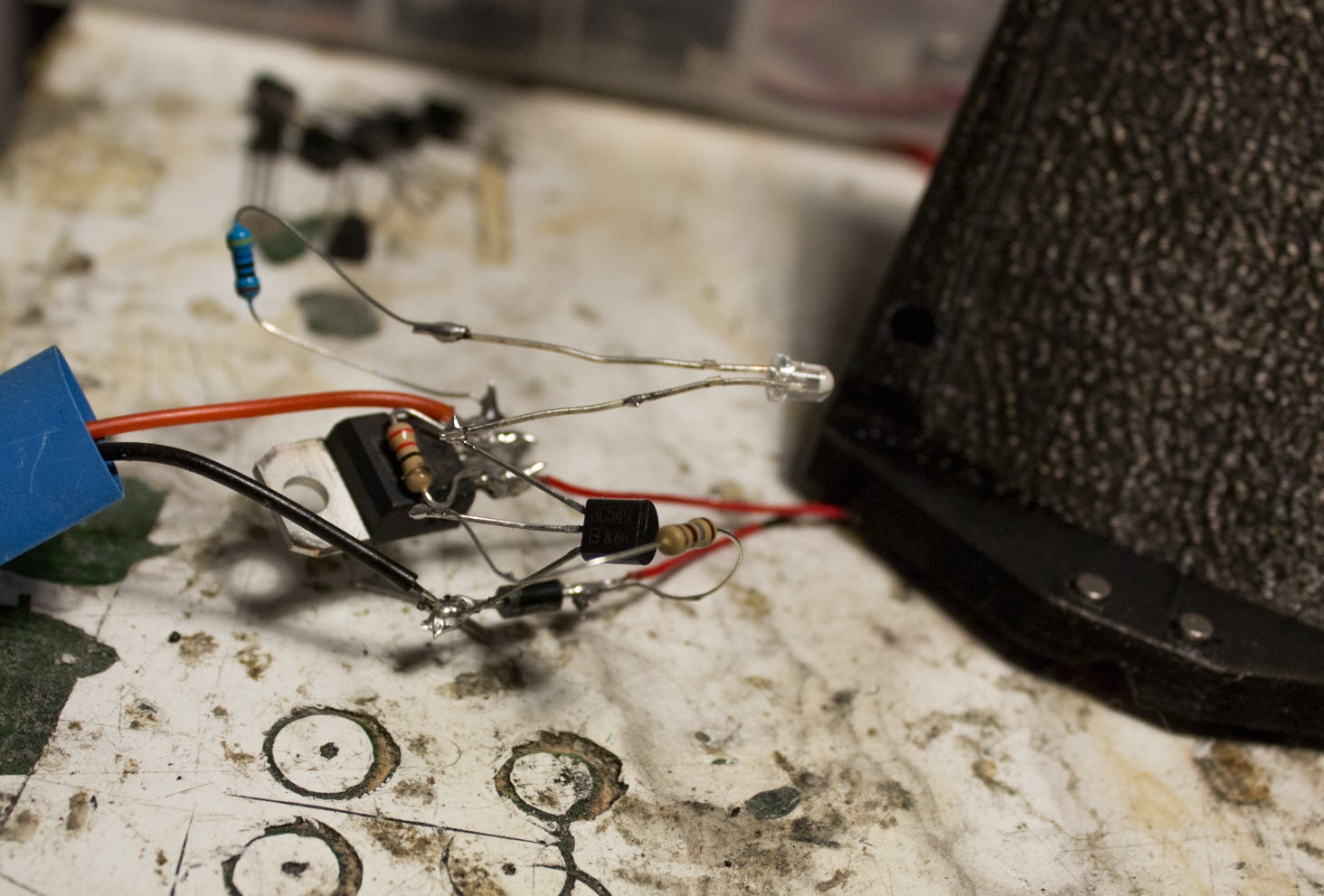

Proof of concept for the voltage drop sensing BC549

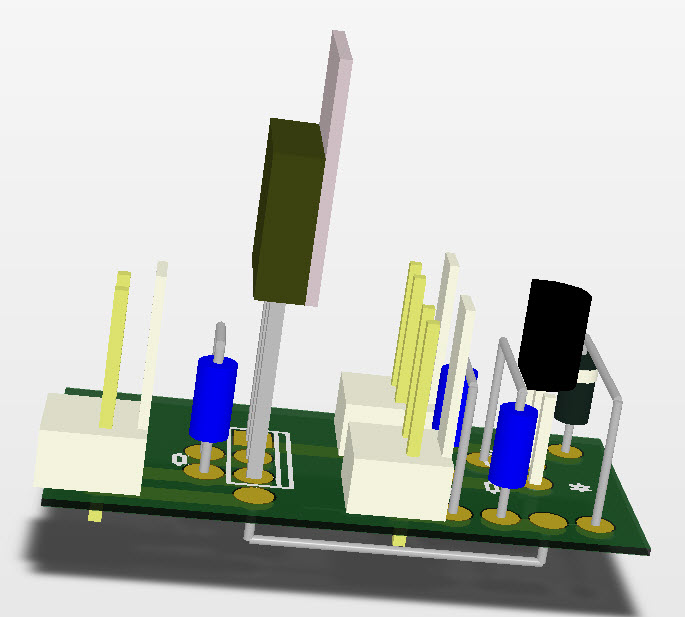

PCB layout

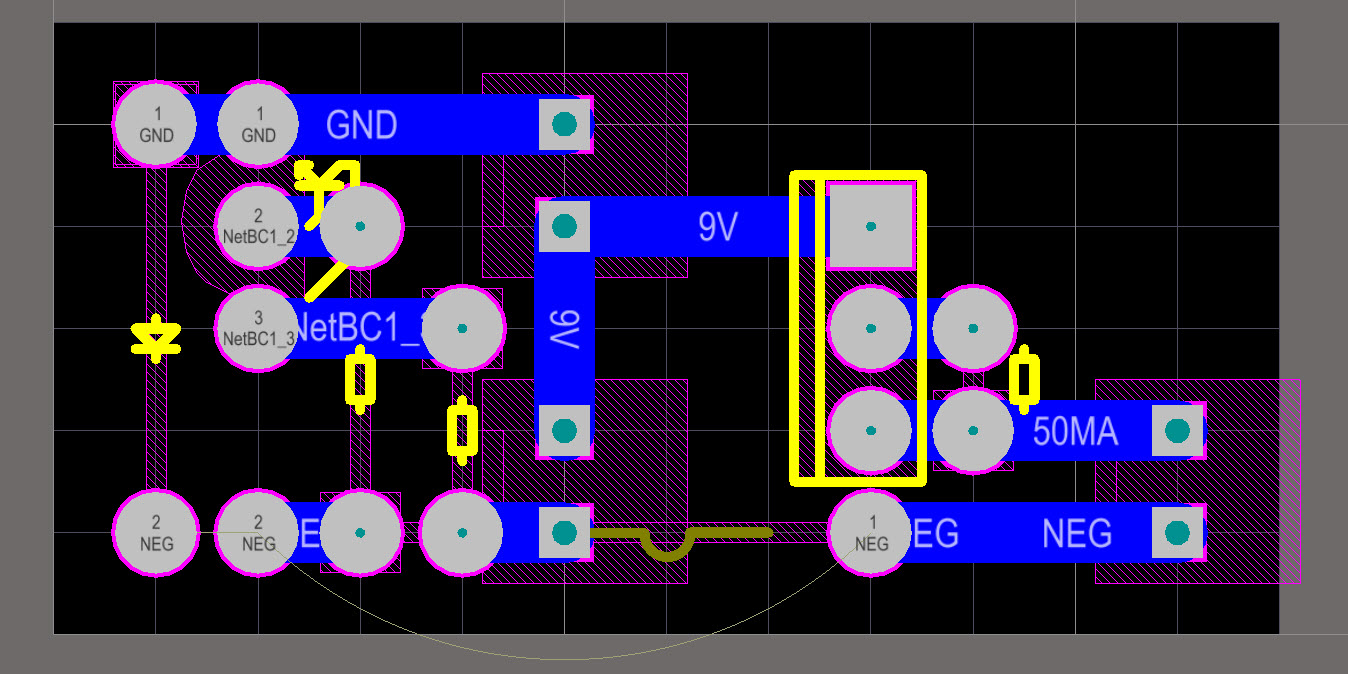

PCB for the chraging circuit

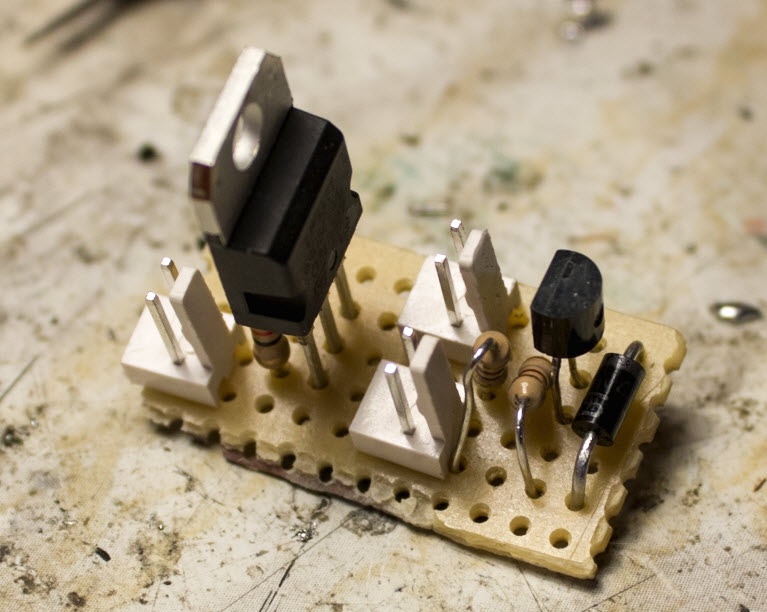

PCB build

PCB completed, the circuit fits snuggly inside a 3D printed charging stand



Charging stand on next page
