Kenwood protocol





Part 4

PCB build

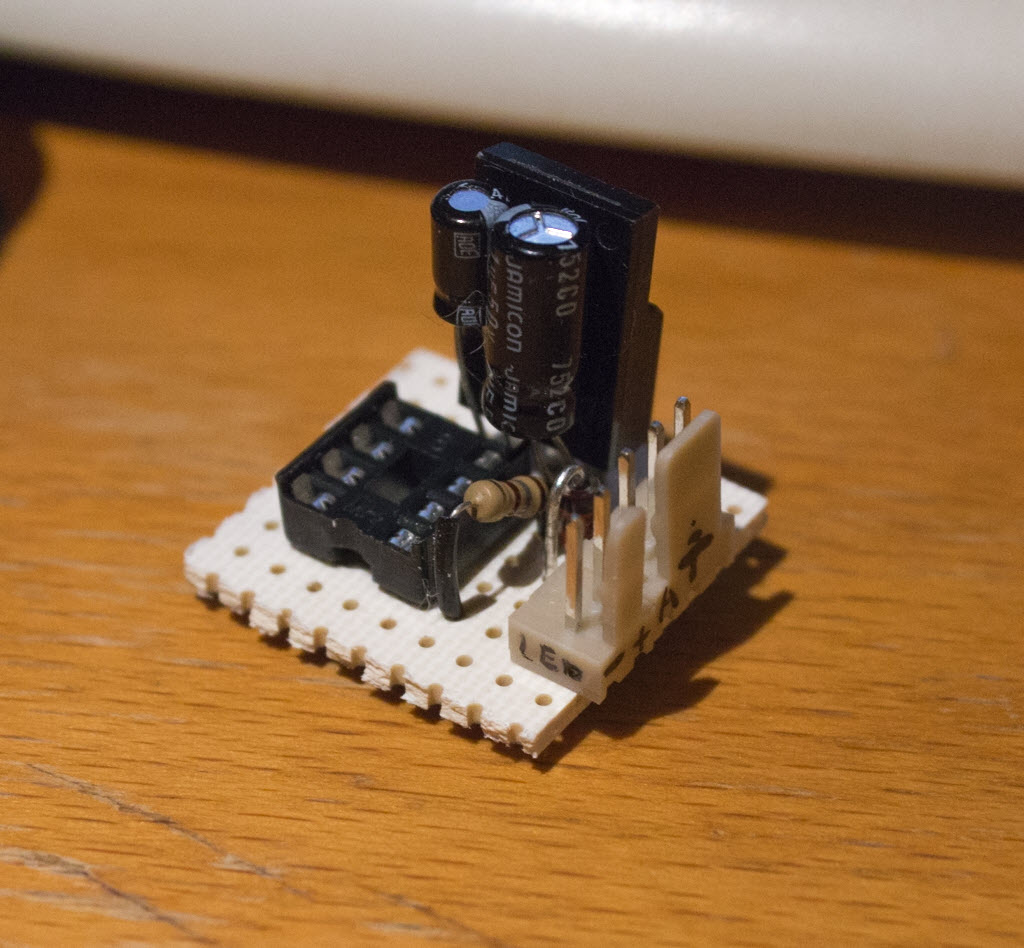

the tiny PCB is finished
caps a bit bigger than hoped for
Current draw of 20mA makes for
about 0.14W to dissipate
12V or 14V -Vout 5V * 20mA

i.e.no heatsink needed and PCB fits nicely in its enclosure

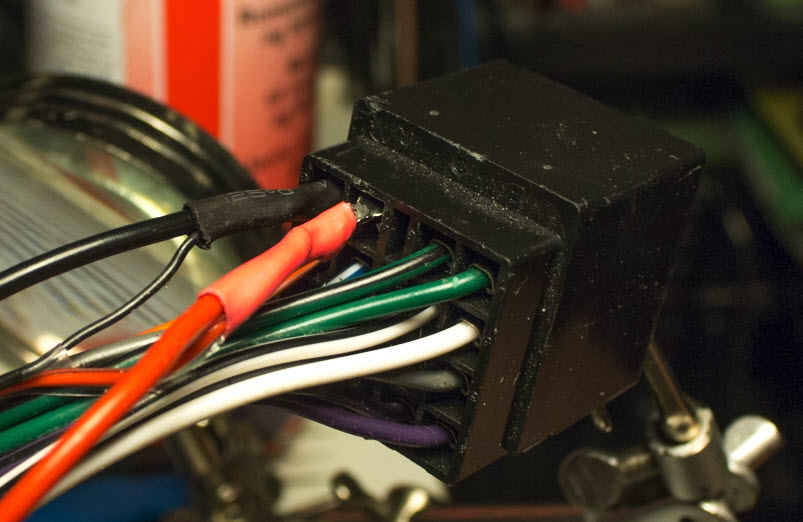

Power for PCB directly from car DIN connector



Code

C code v5.0 Final version...? polished hysteresis



Final product and concept proofs

Testing controls before installation

Head unit installed and working
