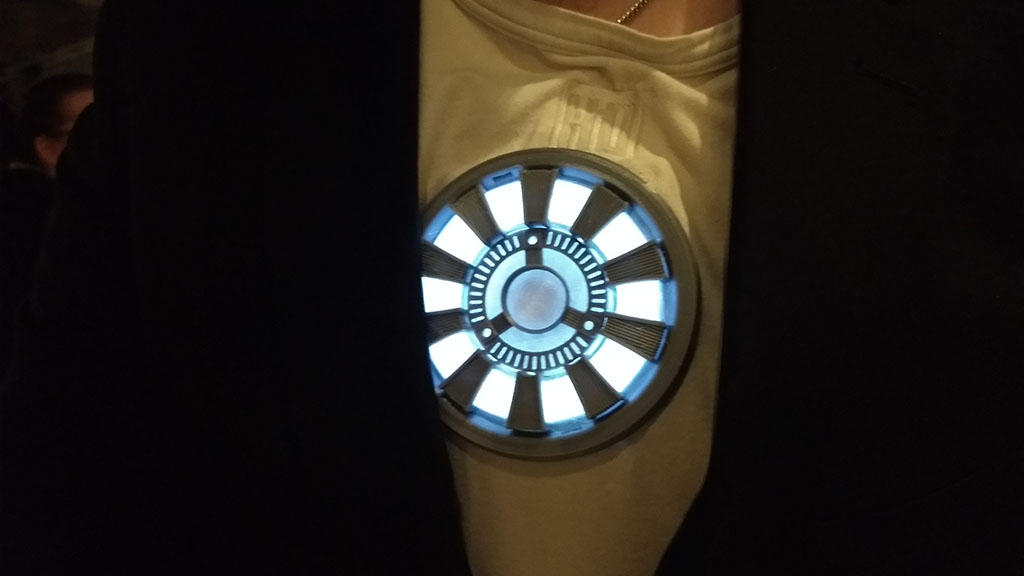

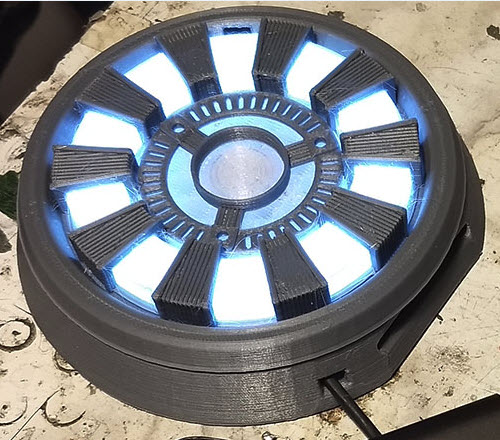

Arc reactor prop

Synopsis

Print and assembly of a halloween prop.
Custom microcontroller used to make the reactor pulsate slowly.
There is a switch included that enables two states:
PWM pulsing and solid light.
Both modes are dimmable with analog potentiometer.

Components needed

Resistor
Capacitor
mosfet (N-channel) IRF2807
battery holder for 2x AA or use a USB powerbank
Cold white LEDs

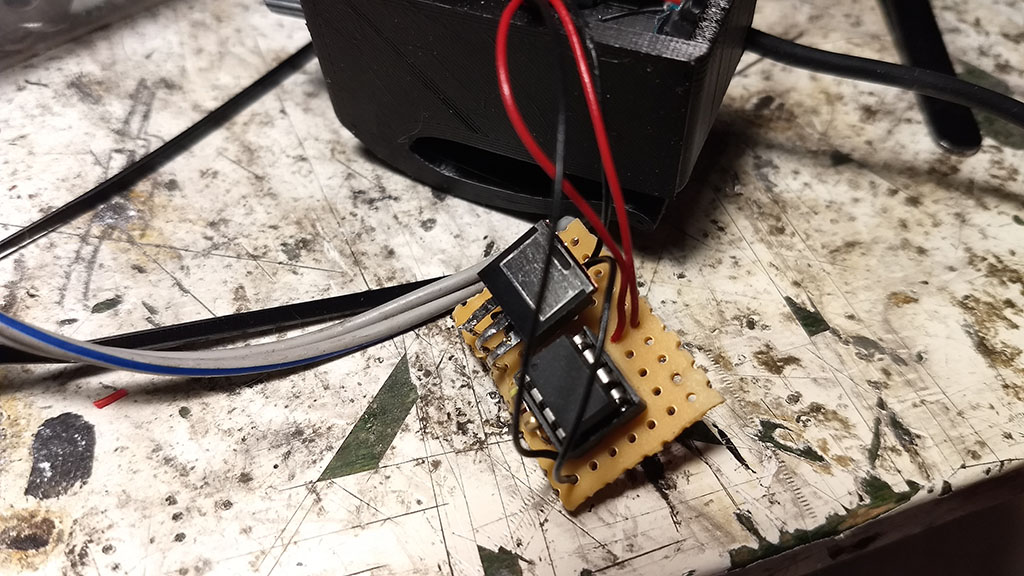

PCB prototyping board
Two state switc
3D printer
STL files - Arc reactor - credit goes to Showphi on Thingiverse
PCB belt clip - credit goes to me ; )
Attiny13 or similar

Printing the parts

Four parts for the reactor.
Two parts for the box.

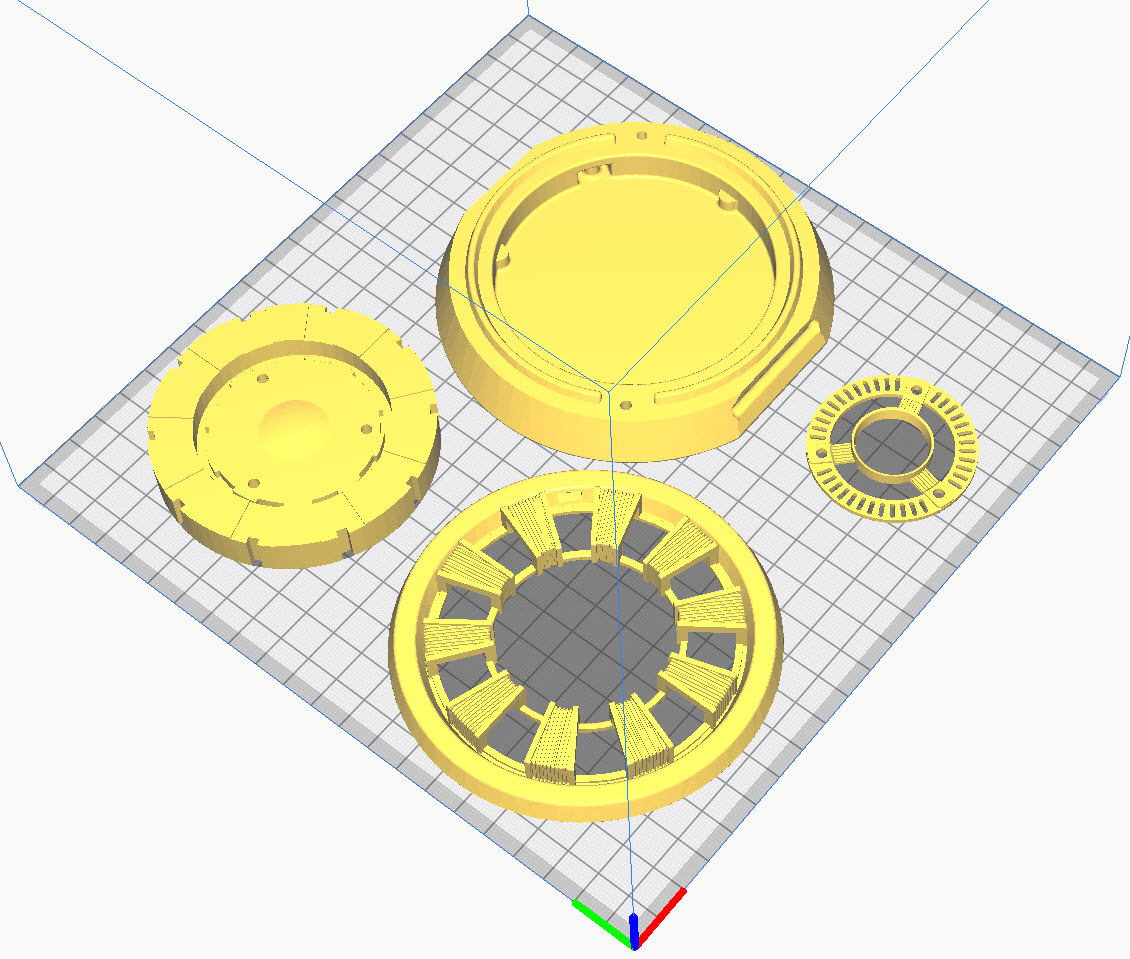

Good old ANET 8 brint bed.

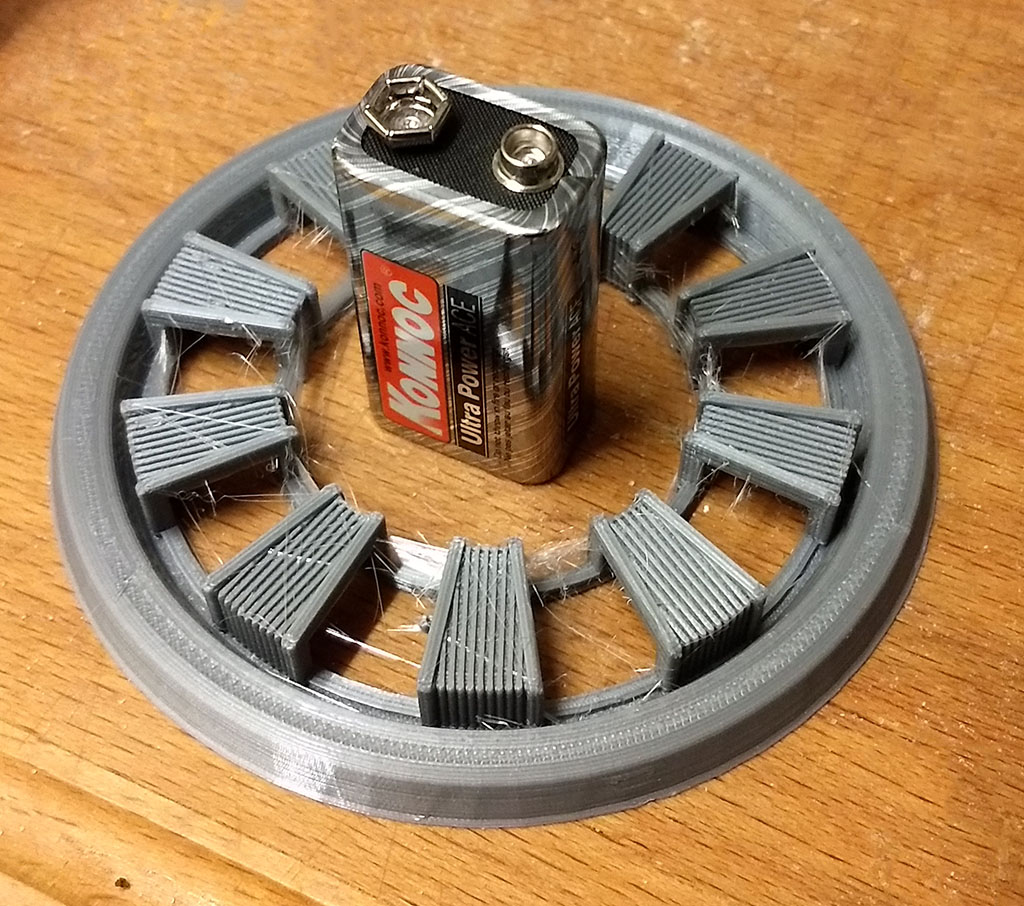

Size comparison.

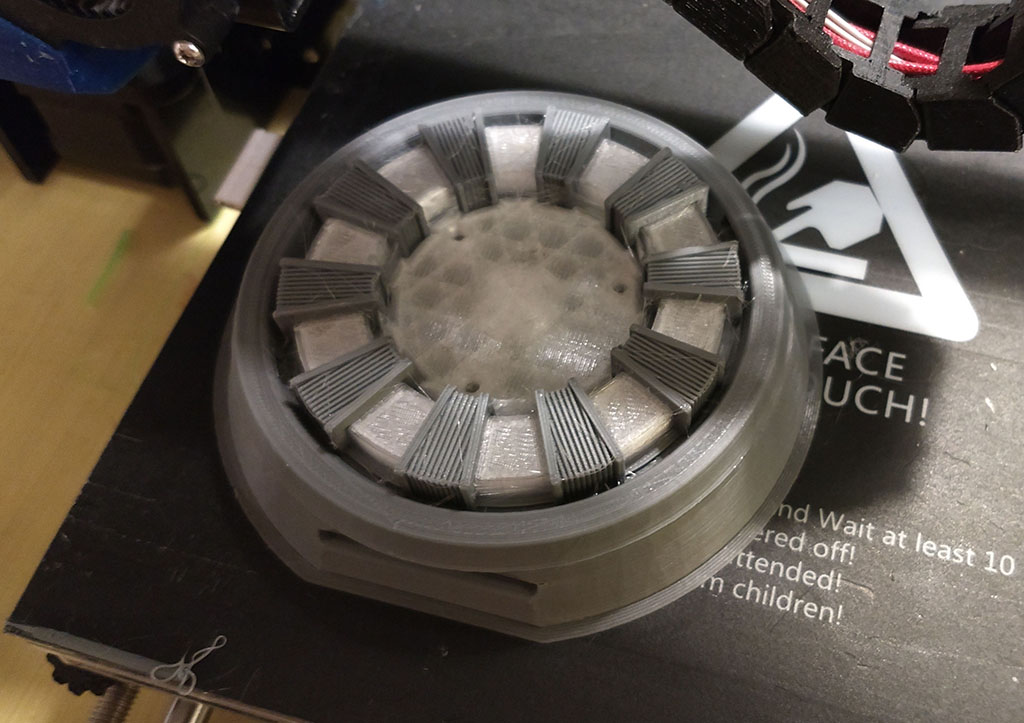

Stacked prints.

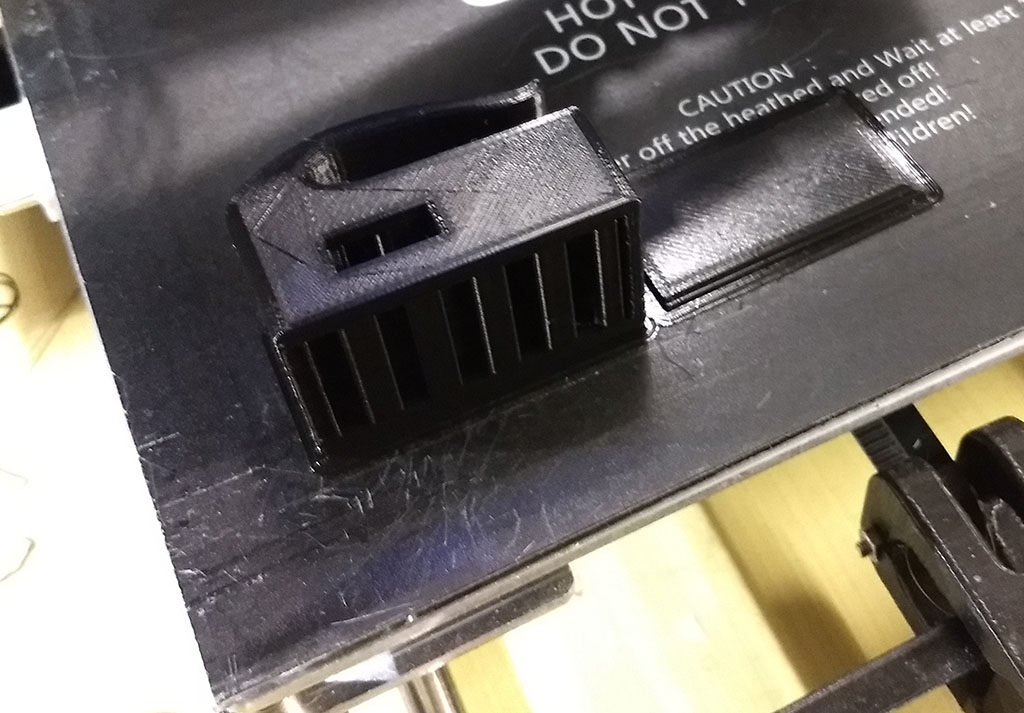

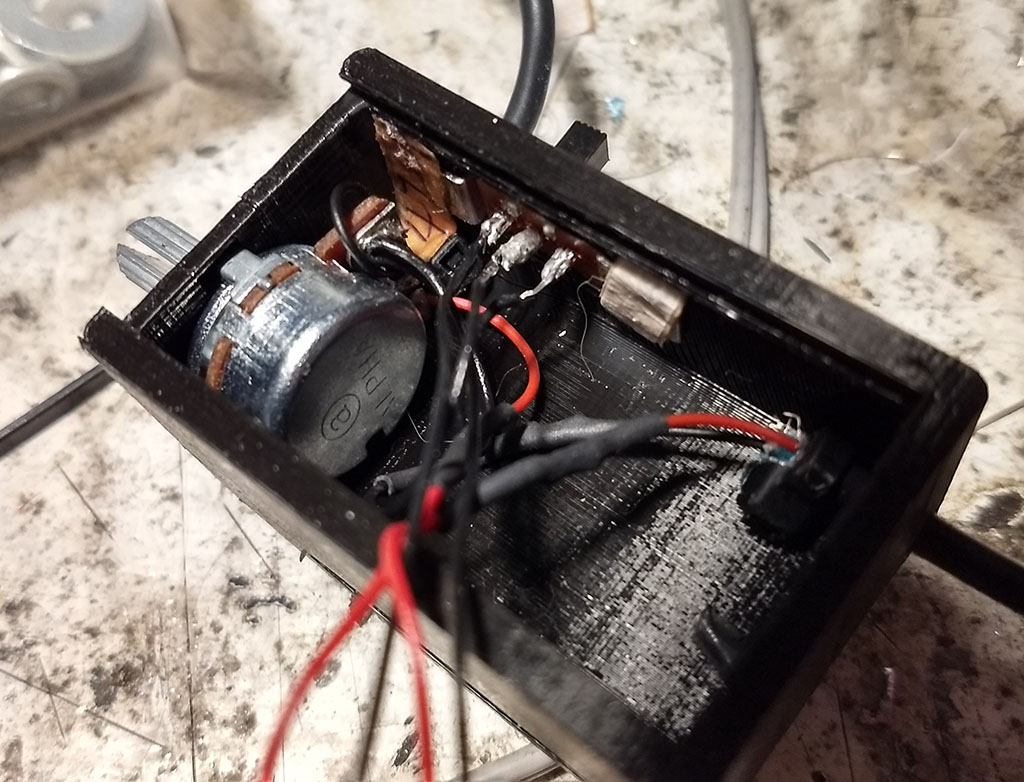

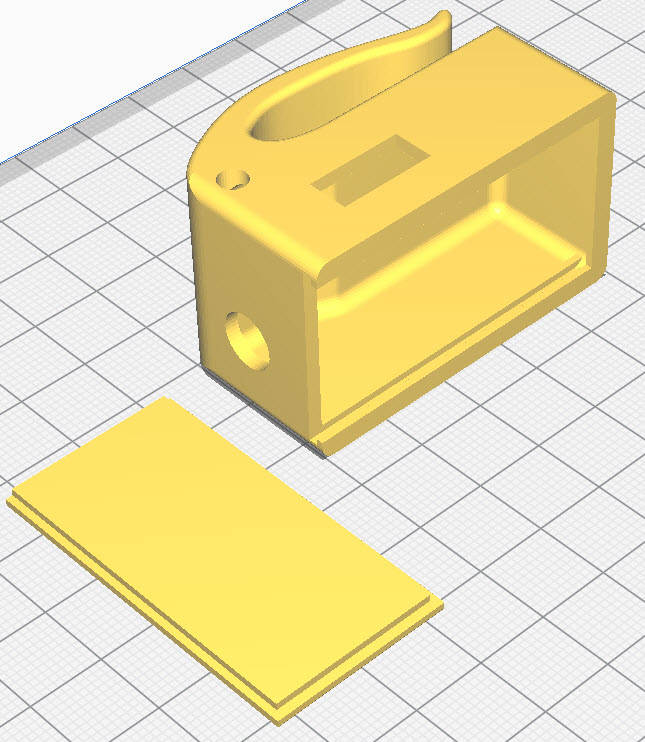

Arc PCB box

Supports needed.

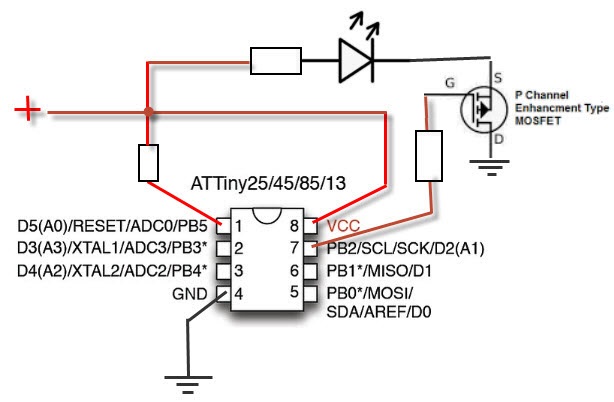

Schematic

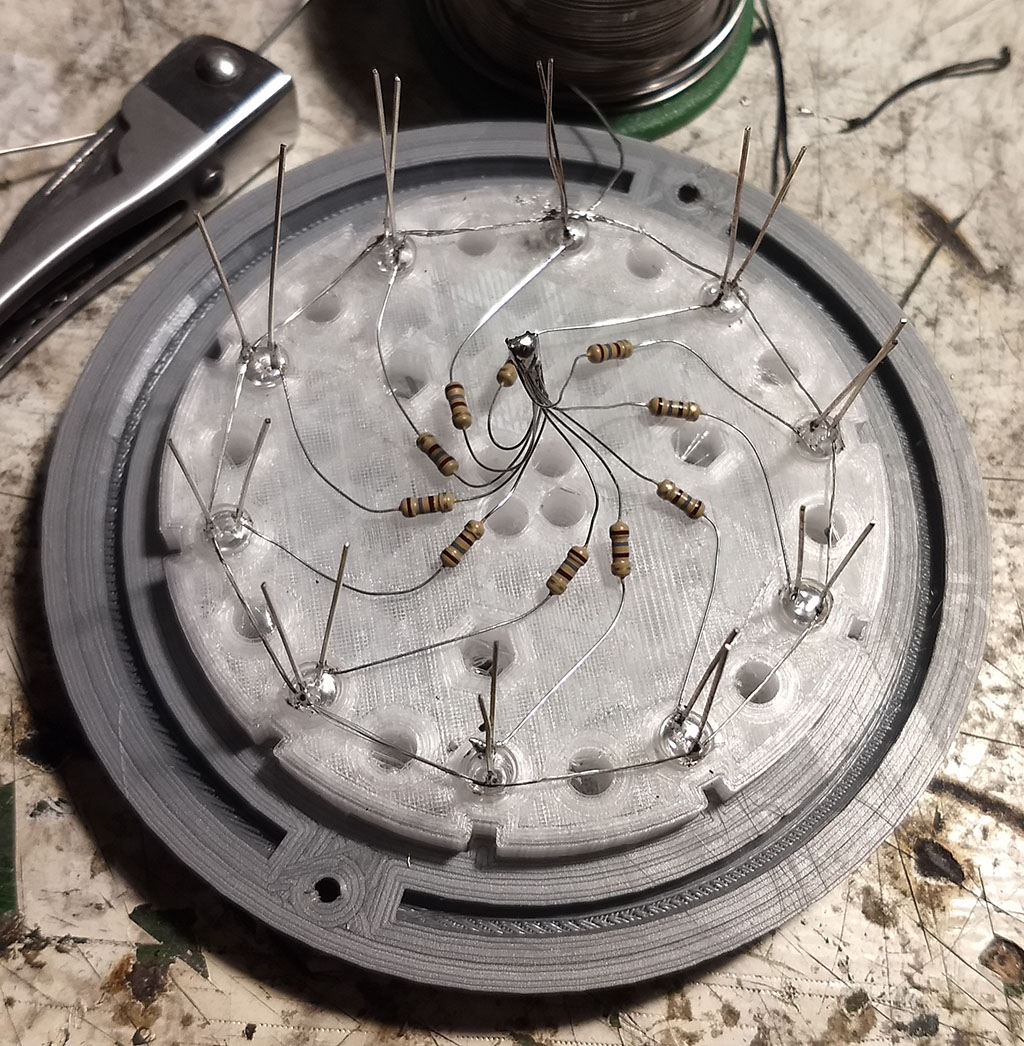

Resistors are all 180Ω
PWM pulse sets the ontime for LEDs, they can all be parallell
connected since the MOSFet removes the current load from the microcontroller.
I placed a 100kΩ potentiometer in series with the LED resistors, makes the light dimmable. also in dark environment battery life is greatly extended.

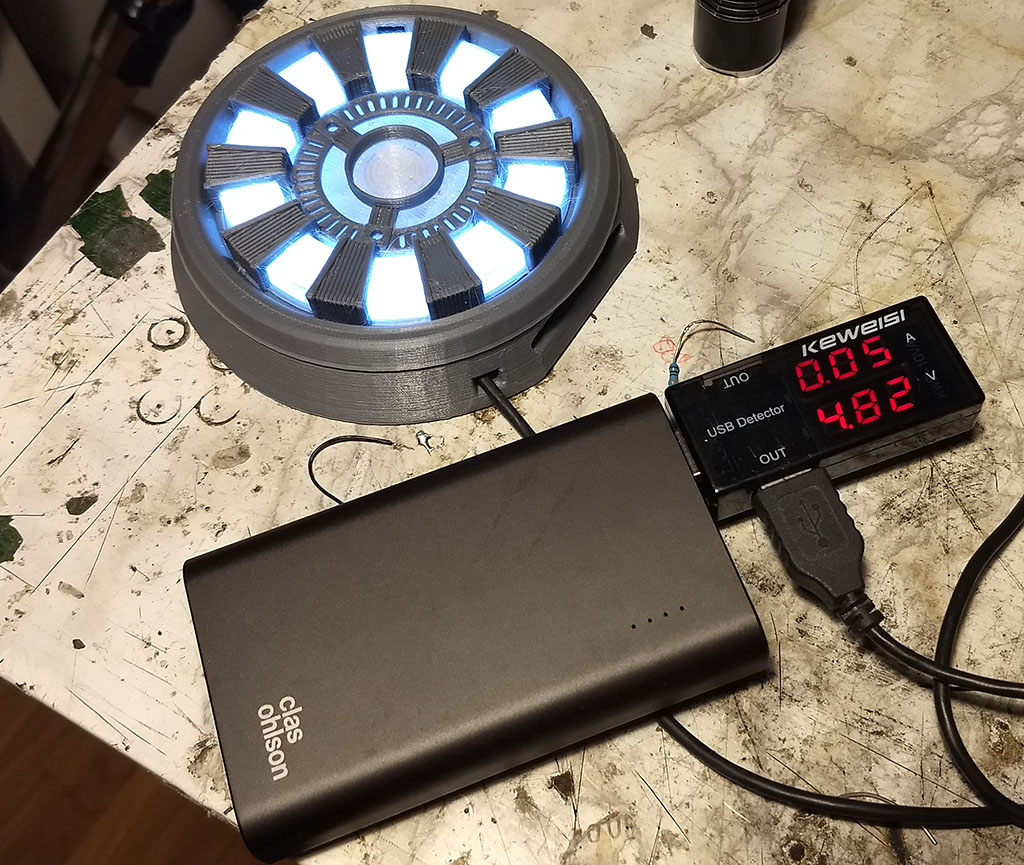

lowest current draw per diode is 22μA

Basic schematic, no caps needed.
This circuit does not have "state" switch

I've misplaced the code...
perhaps I'll find it soon.
