PIR light switch





Synopsis

Too lazy to switch on the lights by yourself? annoyed with the
commercial versions that shut off and has to be "waved" on again?

Heres a simple DIY that amends those first world problems



Components needed

resistors
capacitors
mosfet (P-channel) IRF9510 in this case
12V wall plug
LED strips 12V
PIR sensor
BJT transistor NPN BC547
diodes, tvs -not really needed

PIR sensor TDL-718

this component runs on 12V at gives a short 3s pulse of 3.3V
when sensing movement.

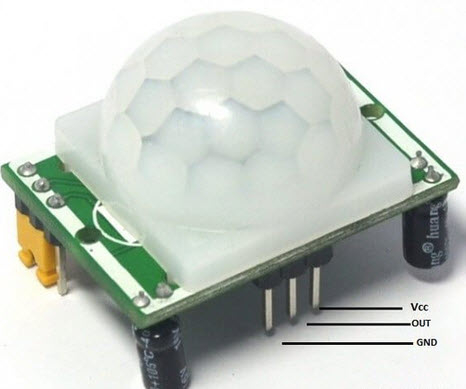

Generic ebay PIR sensor

Output connected via resistor to PNP transistor
shorting out the capacitor and thus allowing the mosfet
to allow current to pass.

Since cap voltage will pass full saturation the LEDs wil fade on / off

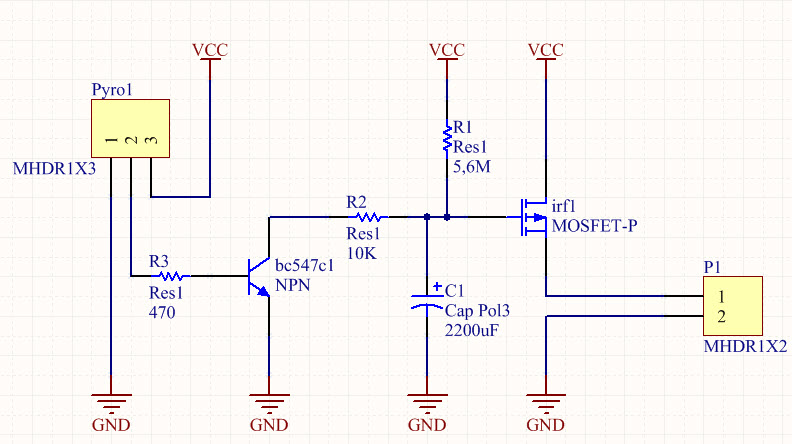

Schematic

Resistor R1 sets the ontime icw cap C1
allow R2 to protect transistor

Basic schematic, I later added som tvs diodes

Prototype board

Components on board



Installation

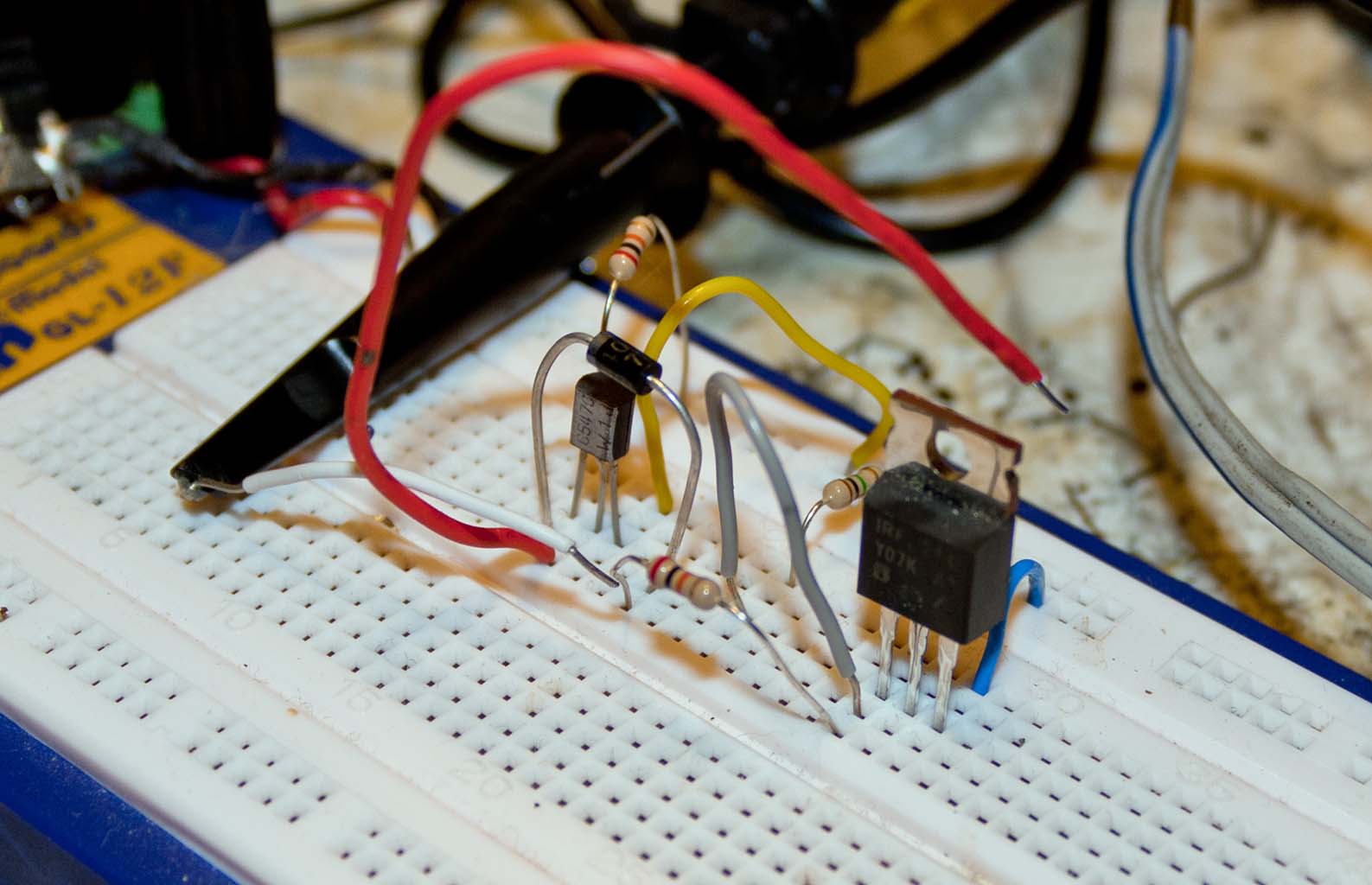

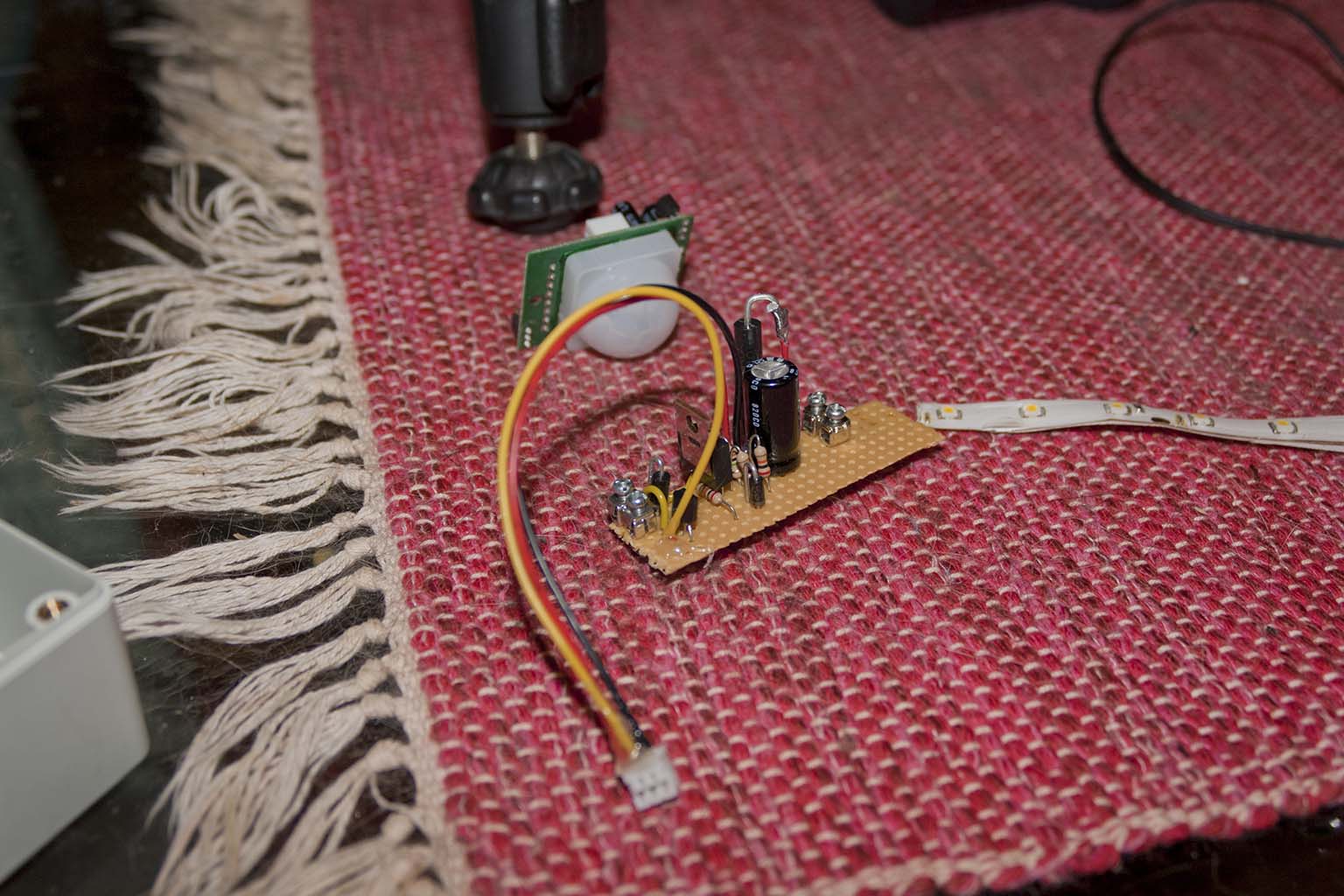

First prototype board

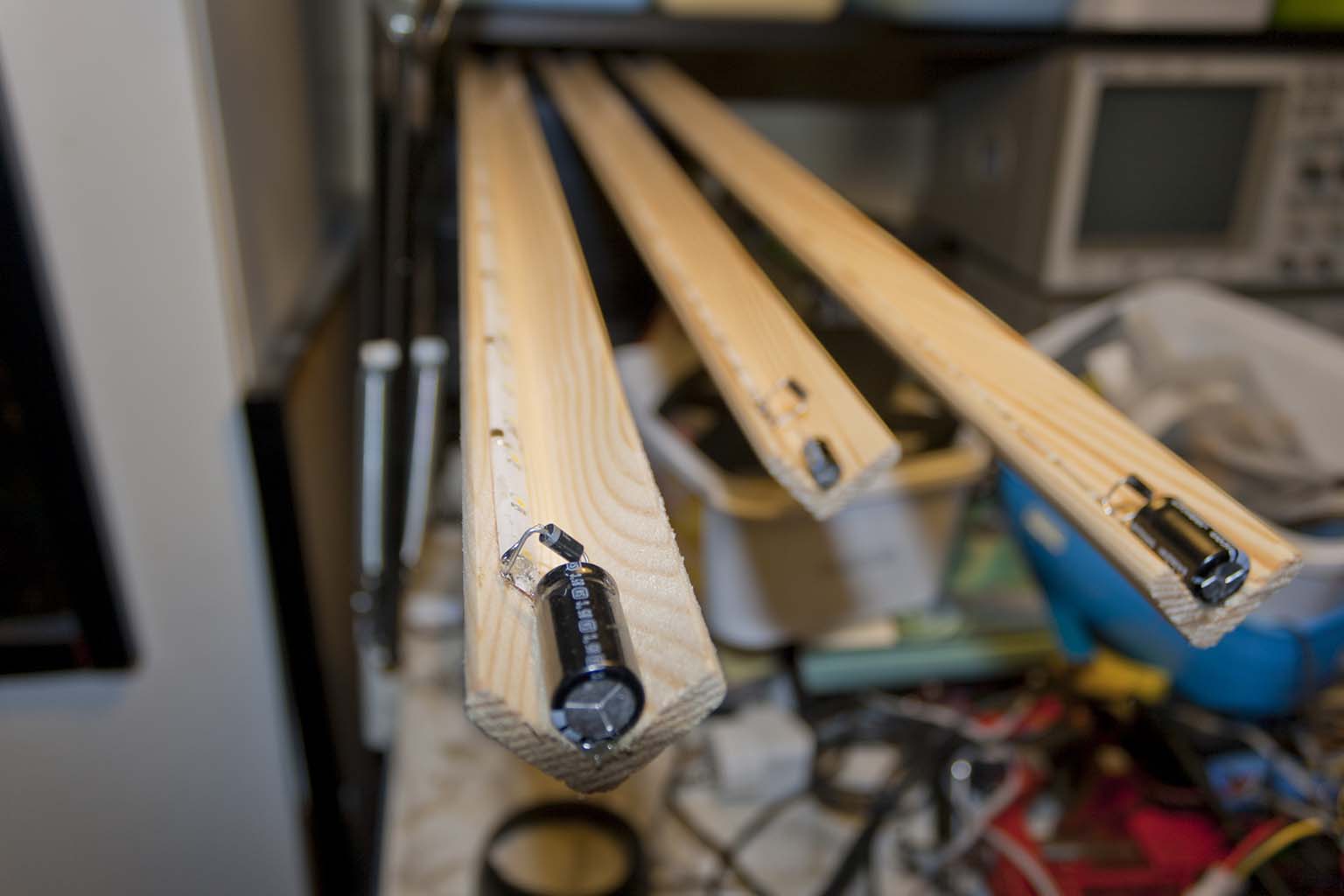

Filter cap and tvs diode due to poor wiring in house

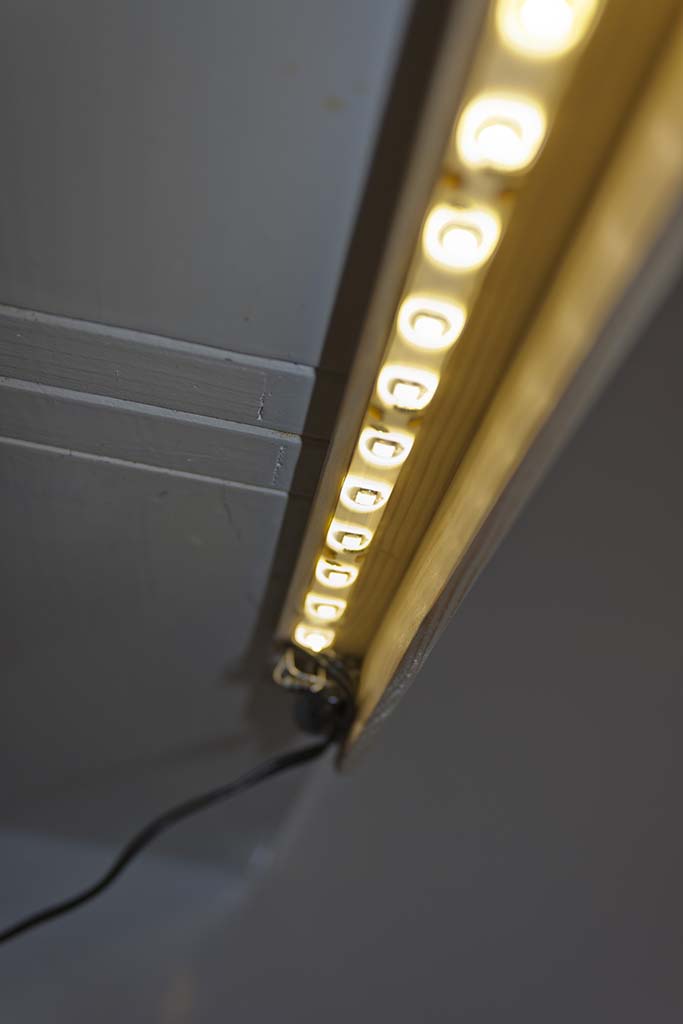

Lights up ok, low exposure

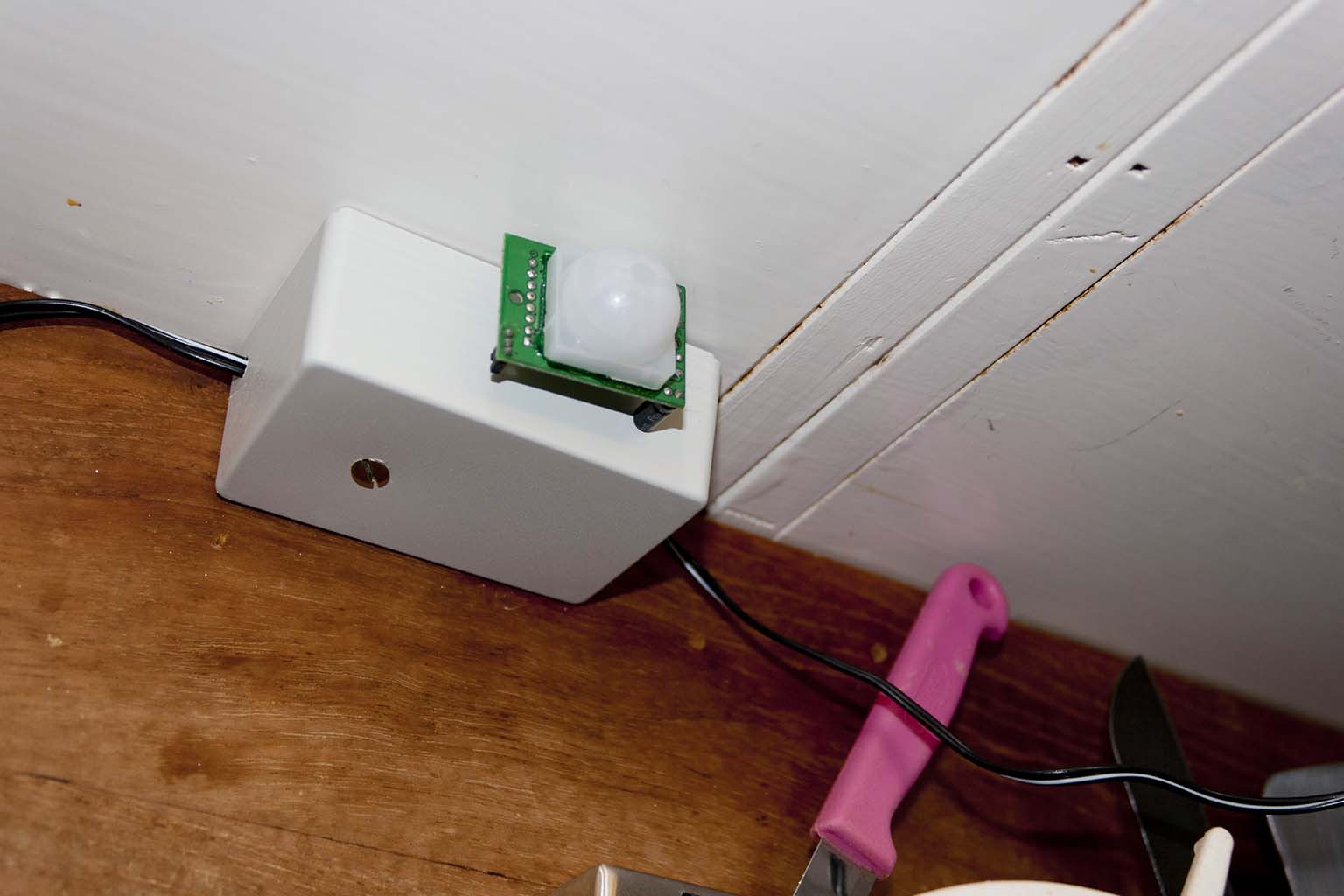

PIR sensor under cabinet,3D printed enclosure

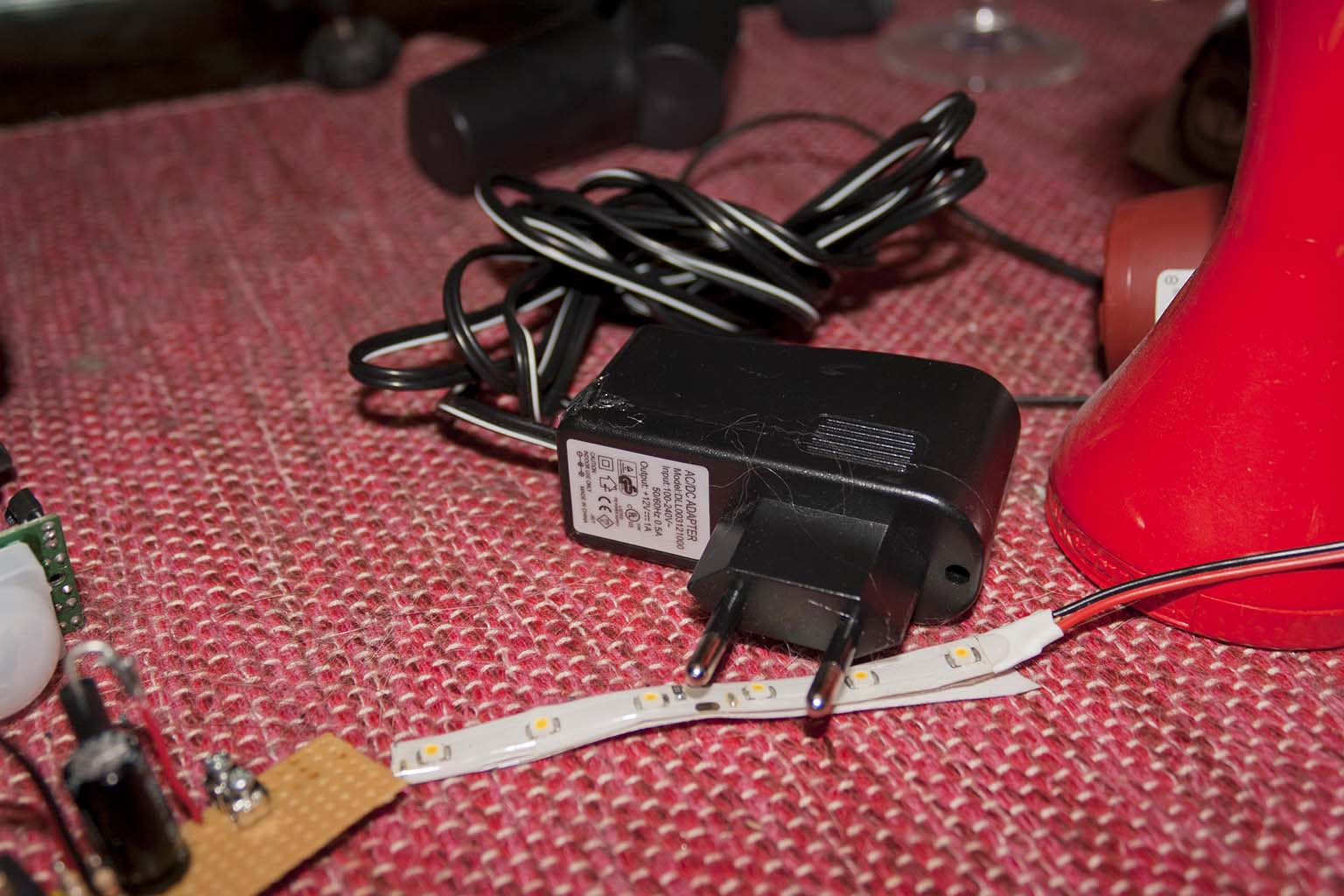

generic 12V 1A supply



Testing the setup

Cabinet door are at the paintshop..

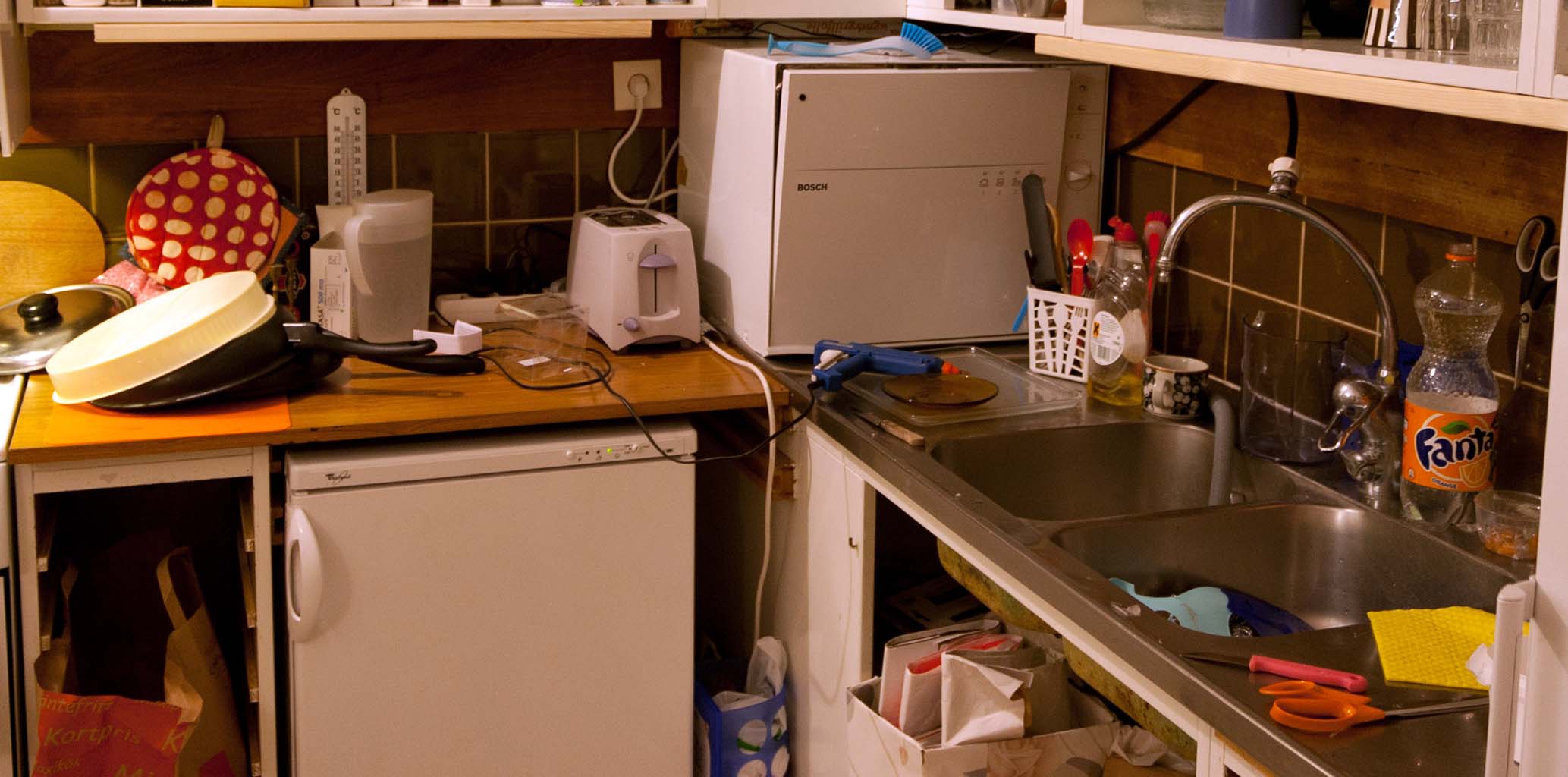

LEDs off

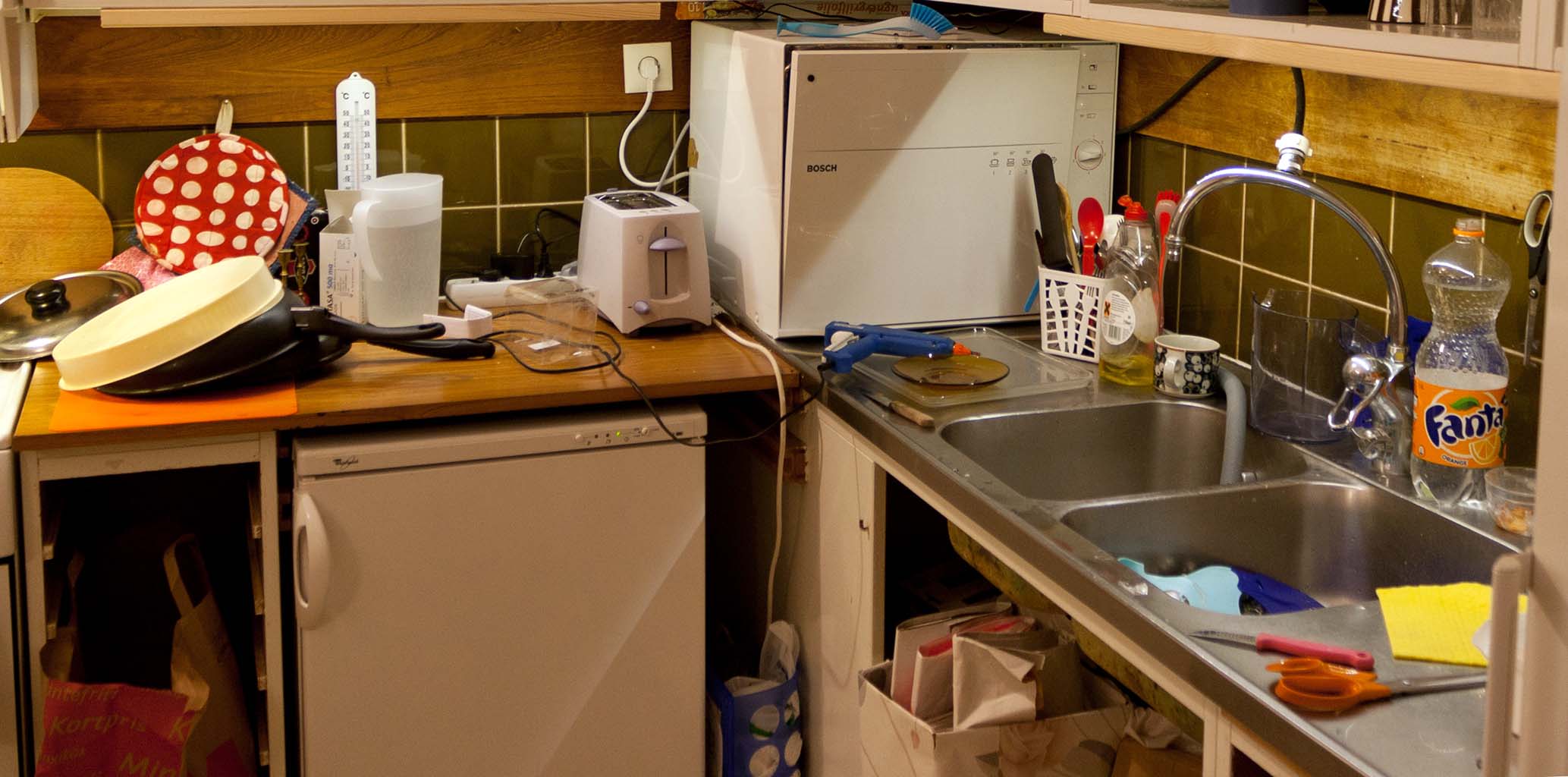

LEDs on





Youtube
